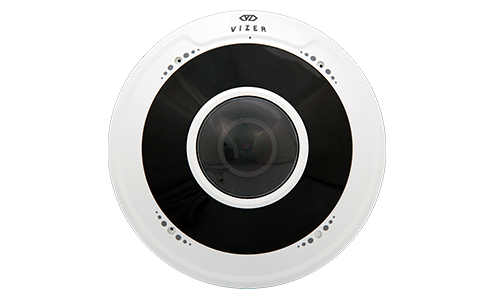

VZF814SR-DVPF16
|
|
Camera
|
|
Image sensor
|
1/3″, progressive scan, 4.0 megapixel, CMOS
|
|
Lens
|
1.6mm@ F1.6
|
|
Angle of View (H)
|
180°
|
|
Shutter
|
Auto/Manual，shutter time：1/6 s ~1/100000 s
|
|
Minimum Illumination
|
Colour: 0.02 Lux (F1.6, AGC ON)
0 Lux with IR
|
|
Day / Night
|
IR-cut filter for day & night function
|
|
Digital noise reduction
|
2D/3D DNR
|
|
S/N
|
>55dB
|
|
IR Range
|
UP to 10m (33ft)
|
|
Defog
|
Digital Defog
|
|
WDR
|
120dB
|
|
Video
|
|
Compression
|
Ultra265, H.265, H.264,MJPEG
|
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
|
Frame Rate
|
Main Stream : (2560×1440) : Max.25fps;
Sub Stream: (1920×1080) : Max.25fps;
Third Stream: D1(720 x 576): Max.25 fps
|
|
BLC
|
Supported
|
|
OSD
|
Up to 8 OSDs
|
|
ROI
|
Up to 8 areas
|
|
Privacy Mask
|
Up to 8 areas
|
|
Motion Detection
|
Up to 4 areas
|
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
|
Audio
|
|
Audio Compression
|
G.711
|
|
Two-way audio
|
Supported
|
|
Suppression
|
Supported
|
|
Sampling Rate
|
8 KHZ
|
|
Storage
|
|
Edge Storage
|
Micro SD, up to 128GB
|
|
Network Storage
|
ANR
|
|
Network
|
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
|
|
Compatible Integration
|
ONVIF(Profile S, Profile G), API
|
|
Live View Display
|
|
Mount Type
|
Support table, wall, and ceiling
|
|
Interface
|
|
Audio I/O
|
Audio interface
|
|
Input: impedance 35 kΩ; amplitude 2 V [p-p]
|
|
Output: impedance 600 Ω; amplitude 2 V [p-p]
|
|
3 built-in omnidirectional microphone
|
|
Alarm I/O
|
1 / 1
|
|
Built-in Mic
|
Supported
|
|
Built-in Speaker
|
Supported
|
|
Video Output
|
1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
|
|
Network
|
1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
|
|
General
|
|
Power
|
DC12V±25%,PoE(IEEE 802.3af)
|
|
Power consumption: Max. 11 W
|
|
Dimensions (Ø x H)
|
Φ125x 43.7 mm (Φ4.9” x 1.7”)
|
|
Weight
|
0.39kg(0.86lb)
|
|
Working Environment
|
-40°C ~60°C (-40°F ~ 140°F), Humidity :10%~95% RH
|
|
Ingress Protection
|
IP66
|
|
Vandal Resistant
|
IK10
|
|
Reset Button
|
Supported
|
