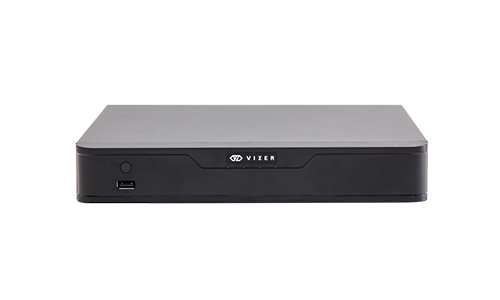

VZN301-04-P4 |
VZN301-08-P8 |
VZN301-16-P8 |
| Video and Audio |
| IP Video Input |
4-ch |
8-ch |
16-ch |
| Two-way audio Input |
1-ch, RCA |
| Network |
| Incoming bandwidth |
40Mbps |
60Mbps |
60Mbps |
| Outgoing bandwidth |
64Mbps |
64Mbps |
80Mbps |
| Remote connection |
128 |
| Video/Audio Output |
| HDMI/VGA Output |
HDMI:
4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
| Audio Output |
1-ch, RCA |
| Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback |
4-ch |
8-ch |
16-ch |
| Decoding |
| Compression |
H.265/H.264 |
| Live view/ Playback |
8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability |
1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25, 16 x D1 |
| Hard Disk |
| SATA |
1 SATA interface |
| Capacity |
up to 6TB for each disk |
| External Interface |
| Network Interface |
1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| Network Function |
HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P |
| USB Interface |
Rear panel：2 x USB2.0,Front panel：1XUSB2.0 |
| Alarm In |
4-ch |
| Alarm Out |
1-ch |
| PoE |
| Interface |
4 independent 100 Mbps PoEnetwork interfaces |
8 independent 100 Mbps PoEnetwork interfaces |
| Supported Standard |
IEEE 802.3at, IEEE 802.3af |
| General |
| Power Supply |
48V DC |
52V DC |
| Consumption ( without HDD ) |
≤ 5 W |
| PoE |
Max 30W for single port
Max 54W in total ( 13.5W for each ) |
Max 30W for single port
Max 108W in total ( 13.5W for each ) |
| Working Temperature |
-10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity |
10% ~ 90% |
| Dimensions |
44 × 260 × 240mm ( 1.7″ × 10.2″ × 9.4″ ) |
| Weight ( without HDD ) |
≤ 1.12 Kg ( 2.47 lb ) |
